Digitalization in rubber processing - the example of extrusion

Project runtime: 01.04.2021 - 31.03.2024

Digitalization in rubber processing - the example of extrusion

In traditional rubber processing, the use of manual staff remains high even in the era of Industry 4.0. This branch of industry therefore has a high potential with regard to the automation of work processes.

The processing of rubber compounds by means of single-screw extrusion has been chosen as an example process from the rubber industry. The process chain starting with the raw materials and ending with the finished rubber component is divided into many sub-steps, similar to the baking trade. Essential are the selection of ingredients, mixing, rolling, shaping, vulcanising ("baking") and finally product control. During these processing steps, a lot of data is collected, for example direct machine settings such as speed, screw and barrel temperature or indirect machine data such as rubber temperature, pressure and output.

Often, however, the quality of the end product is heavily dependent on the experience of long-serving employees from a wide range of disciplines. Especially when using natural rubber, a renewable but often unspecified raw material, there are often variations in processing.

In this research project, the knowledge and experience of the employees are to be used to collect, evaluate and then digitize existing process data and data to be determined experimentally. In order to link all this data from the various disciplines of process technology, logistics, chemistry, physics and mathematics (simulation), the existing language customs of each individual discipline will be transferred into a common standard language. By networking all the machines involved in real time, it will thus be possible to produce closer to optimum quality, to counteract the increasing shortage of skilled workers and to significantly strengthen Germany as a high-tech location for rubber processing.

Short presentation BMBF Kick-Off (10.06.21): Project presentation DIGITRUBBER

Current project status (Plenary Meeting 17.03.22): Contribution to PMD

Contribution of DIGITRUBBER to ACHEMA 2022: Contribution to ACHEMA 2022 | Presentation ACHEMA 2022

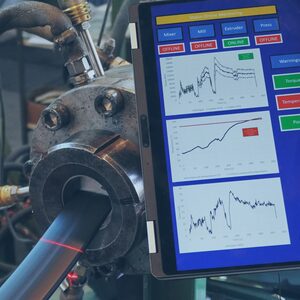

Video / Demonstrator of DIGITRUBBER for PMD General Assembly on 03.11.2022 in Berlin Video

Tasks within the project Location
Deutsches Institut für Kautschuktechnologie e. V.
Elaboration of ontologies and digital twin
Technology University Library (TIB)
Elaboration of database infrastructure and ontologies
Jade University of Applied Sciences Wilhelmshaven/Oldenburg/Elsfleth - Location Oldenburg - The Institute for Applied Photogrammetry and Geoinformatics
Research into a photometric 3D measurement technique
Institut für Nanophotonik Göttingen e.V.
Research into techniques for monitoring the extrusion process using spectroscopic methods
University of Applied Sciences and Arts - Faculty IV - Economics and IT
Elaboration of databases and simulations
Leibniz University of Hannover - Faculty for mechanical engineering - Institute of Transport and Automation Technology
Exploring methods of data mining and AI for use in the context of process control
Leibniz University of Hannover - Faculty for mechanical engineering - Institute of Measurement and Automatic Control
Research into a measuring system for determining geometry and temperature data in the process
